Custom Valk lift

lift 1.jpg (77746 bytes)

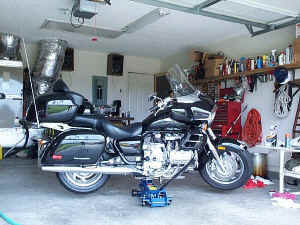

Valk on its way to the top.

lift 2.jpg (75529 bytes)

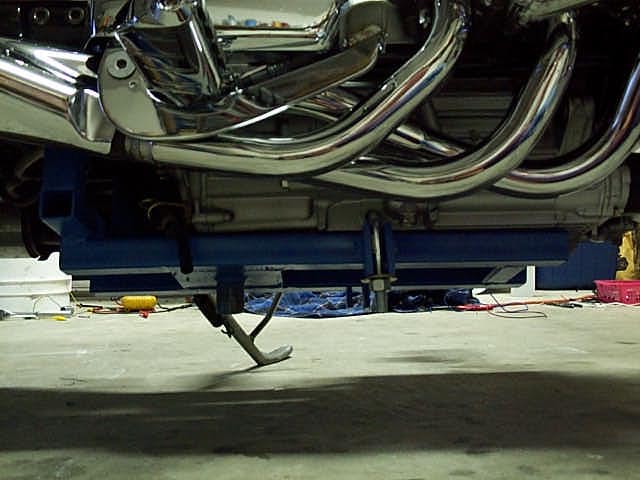

Full lift.  It's actually more stable at higher lift.    But stable al all levels.

lift high.jpg (68706 bytes)

Easy to clean.

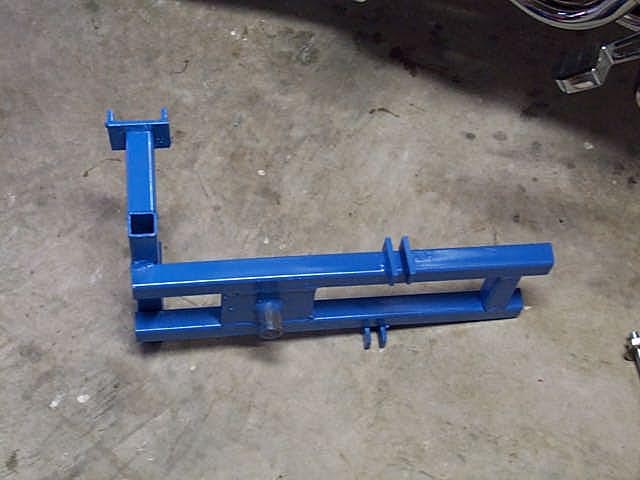

Some modifications form the original design.

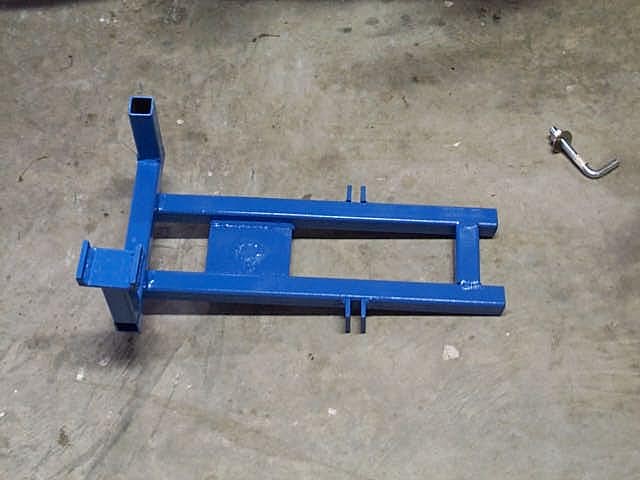

The original design had the plate with the stub shaft welded across the bottom. but in an effort to get this system to work on my Interstate, I had to weld the plate flush with the bottom and cut the stub shaft shorter. my bike must be lower than a Standard Valkyrie or my jack is taller than most. But this works fine the way it is and is very stable. It makes cleaning the wheels a breeze! Also keeps the bike upright and stable when I work on it.
